The 16.0 is Coda’s flagship Class A stereo amplifier, sharing the design of the 40.5. Optimized for Class A operation, the 16.0 is better suited to low-impedance speaker systems where higher current capability yields superior performance. The optional remote control allows input selection and bias control, and internal controls allow the 16.0 to be bridged into a high-current monoblock.



150 Watts into 8 Ohms

300 Watts into 4 Ohms
Precision Bias Class A operation to 100 Watts sliding to Class AB at higher output level
Ultra high current non-bridged design
Fully discrete FET differential input stage
Vertical MOSFET Voltage Gain Stage
DC coupled to an ultra wideband bipolar output stage
Very high linear damping with minimal feedback
AC-coupled unbalanced input and true DC coupled balanced input
Double-sided gold plated circuit boards
3.0kVA toroidal power transformer
Low-impedance power supply filter capacitor array
Graphite anodized aluminum and stainless steel finish
Power supply and Bias status indicators
10 year warranty / 5 year
Designed, manufactured and assembled in the USA

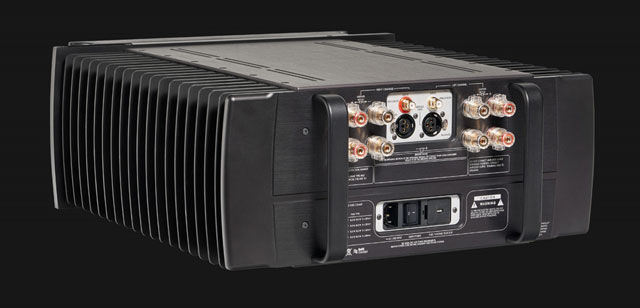

CODA 16.0 Stereo Amplifier

$16,000.00Price
  • Ships in approximately 1-3 weeks

    FREE Shipping

  • Rated Power:

    Frequency Response: Distortion:

    Gain:
    Maximum Current: Noise:
    Input Impedance:

    Output Impedance: Power Supply:

    Dimension: Weight :

    150W/ch Class AB into 8Ω (100W/ch Class AB into 8Ω) 300W/ch Class AB into 4Ω 600W bridged Class AB into 8Ω 1200W bridged Class AB into 4Ω

    DC to 100kHz @ -3dB

    <.02% from 10Hz to 20kHz at rated power

    26dB

    >100 Amperes peak per channel

    -120dB

    50kΩ unbalanced 10kΩ balanced

    .03Ω from 20Hz to 20kHz
    .06Ω bridged from 20Hz to 20kHz

    3kVA toroidal power transformer. Dual independent rectification and 280,000uF of power supply filter capacitance

    17.5” W x 19” D x 7.75” H 110 lbs.
