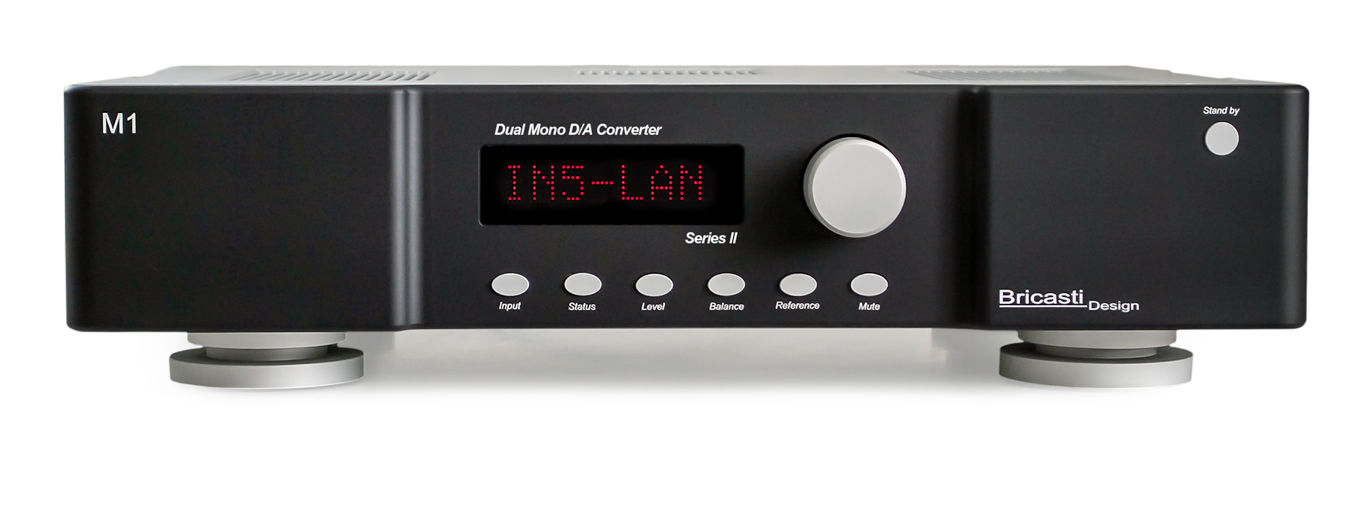

Bricasti M1 Series II Digital to Analog Converter
The Bricasti Design Model 1 Series II D/A Converter

The M1 Series II introduces a new look and feel to the M1 series of products and encompasses many elements of Bricasti Design’s vast wealth of experience engineering precision D/A’s to transform the M1 with the audio purist in mind. The M1S2 is focused on simplicity of design and includes a host of new performance milestones including our latest MDx processor, new higher current twin linear power supplies with larger performance capacitors, all fit into a handcrafted chassis milled from solid aluminum that stands taller in size fitted with the same M1SE feet as standard.

Bricasti M1 Series II Digital to Analog Converter

$13,000.00Price
  • Digital Inputs XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2
    Sample Rates AES, SPDIF, AUX in 44.1 kHz, to, 192khz
    Sample Rates USB 44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native or DoP
    Sample Rates Ethernet 44.1 kHz to 384kHz PCM, 64x 128x 256x Native and DoP/td>
    Jitter 8 psec @ 48k / 6psec @ 96k
    Balanced Analog Outputs XLR balanced (pin 2 hot)
    Impedance 40 ohm
    Output @ full scale +16.5 dbm (5.2V RMS)
    Max Output Level +22 dbm
    D/A Conversion PCM 24 bit delta sigma 8x oversampling, 64x 128x 256x Native and DoP
    Frequency Response @44.1k 10 hz- 20 kHz +0dB, -.2 dB
    Dynamic Range >120dB A-Weighted
    THD+N @ 1k THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs PCM sigma delta<
    Unbalanced Analog Outputs RCA
    Impedance 40 ohm
    Output level Full scale at front panel +6 dbm (1.2V RMS)
    D/A Conversion PCM 24 bit delta sigma 8x oversampling, DSD 128 Native
    Frequency Response @ 44.1k 10 hz- 20 kHz -.2 dB
    Dynamic Range >120dB A-Weighted
    THD+N @ 1k .0008% @ 0dbfs / .0004% @-30dbfs PCM sigma delta
    General Specifications EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B
    RoHS Complies with: EU RoHS Directive 2002/95/EC
    Safety Certified to: IEC 60065, EN 55103-2
    Operating Temperature 32 F to 105 F (0 C to 40 C)
    Storage Temperature: -22 f to 167 F (-30 C to 70 C)
    Finish Anodized aluminum, nickel plating with brass knobs and buttons.
    Dimensions 17” x 12“ x 4.5”
    Weight 15 lbs
    Shipping Weight 18 lbs
    Shipping Dimensions 22”x 17”x 7”
    Mains Voltage -100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
    Trigger out TRS mini jack, Tip ground, Sleeve 5V
    Power consumption: 28 Watts (6W standby)
    Warranty parts and labor 2 yrs non-transferable.

  • Ships in approximately 1 week
