Model 12 Dual Mono Source Controller

The new M12 is a modern front end to any system. All digital inputs types are supported as well as balanced and unbalanced analog inputs, all with precise analog gain control, seamlessly integrated into one product, your source controller.

The M12 builds upon the proven design of the M1 SE D/A converter so your digital sources are handled and converted in the best way. To that we add to it a pure dual mono analog signal path with high resolution analog gain and level control, controlling the output stage of the D/A converter in the analog domain with no loss of resolution and pass thru analog inputs for your analog sources. Like the M1, the M12 is a dual mono design with 3 power supplies and separate left and right analog power supplies and digital and analog processing.

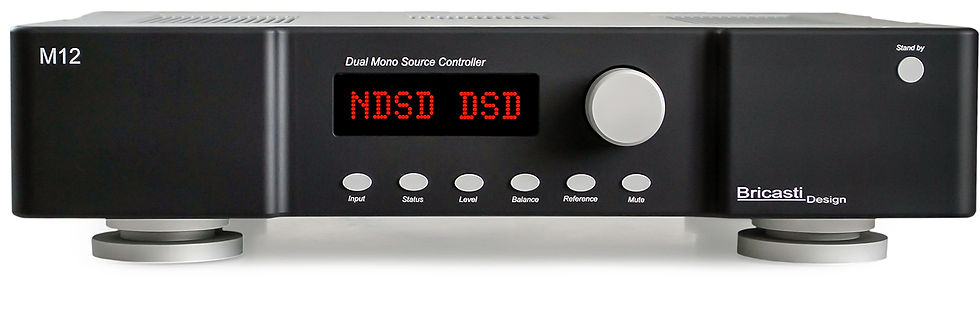

Bricasti M12 Source Controller

  • Digital Inputs XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2
    Sample Rates AES, SPDIF, AUX in 44.1 kHz, to, 192khz
    Sample Rates USB 44.1 kHz, to, 384kHz, DSD 64fs 128Fs as DoP
    Sample Rates Ethernet 44.1 kHz to 384kHz, DSD 128
    Jitter 8 psec @ 48k / 6psec @ 96k
    Balanced Analog Outputs XLR balanced (pin 2 hot)
    Impedance 40 ohm
    Output @ full scale +16.5 dbm (5.2V RMS)
    Output Level 90db in 1 db steps
    D/A Conversion PCM 24 bit delta sigma 8x oversampling, DSD direct 1 bit
    Frequency Response @44.1k 10 hz- 20 kHz +0dB, -.2 dB
    Dynamic Range >120dB A-Weighted
    THD+N @ 1k .0008% @ 0dbfs / .0004% @-30dbfs
    Unbalanced Analog Outputs RCA
    Impedance 40 ohm
    Output level Full scale at front panel +6 dbm (1.2V RMS)
    D/A Conversion 24 bit delta sigma 8x oversampling
    Frequency Response @ 44.1k 10 hz- 20 kHz -.2 dB
    Dynamic Range >120dB A-Weighted
    THD+N @ 1k .0008% @ 0dbfs / .0004% @-30dbfs
    General Specifications EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B
    RoHS Complies with: EU RoHS Directive 2002/95/EC
    Safety Certified to: IEC 60065, EN 55103-2
    Operating Temperature 32 F to 105 F (0 C to 40 C)
    Storage Temperature: -22 f to 167 F (-30 C to 70 C)
    Finish Anodized Aluminum
    Dimensions 17” x 12“ x 4.5”
    Weight 15 lbs
    Shipping Weight 18 lbs
    Shipping Dimensions 22”x 17”x 7”
    Mains Voltage -100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
    Trigger out TRS connector for 5V external trigger.
    Power consumption: 28 Watts (6W standby)
    Warranty parts and labor 2 yrs non-transferable.
