Model 21 Digital to Analog Converter

The M21 Platinum Series is the trifecta of digital to analog conversion. Three independent and user-selectable digital to analog signal paths are available: delta sigma and ladder dac for PCM conversion and for DSD playback, true direct DSD. All digital input types are supported, with direct output or hard-wire bypass of the analog attenuator.

The M21 Digital to analog converter is the continued evolution of both the M1 Special Edition and the M12 Dual Mono Source Controller.

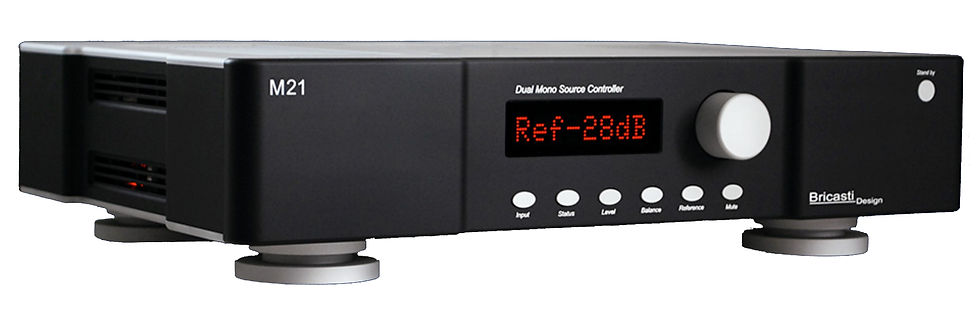

Bricasti M21 Digital to Analog Converter

Name: Bricasti M21 Digital to Analog Converter
Price: 16500 USD
Availability: OutOfStock

$16,500.00

Quantity

Ships approximately 1-2 weeks after order.

Digital Inputs	XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2
Sample Rates AES, SPDIF, AUX in	44.1 kHz, to, 192khz
Sample Rates USB	44.1 kHz, to, 384kHz, DSD 64fs 128Fs as DoP
Sample Rates Ethernet	44.1 kHz to 384kHz, DSD 128
Jitter	8 psec @ 48k / 6psec @ 96k

Balanced Analog Outputs	XLR balanced (pin 2 hot)
Impedance	40 ohm
Output	@ full scale +16.5 dbm (5.2V RMS)
Output Level	90db in 1 db steps
D/A Conversion	PCM 24 bit delta sigma 8x oversampling, DSD direct 1 bit, 384Khz ladder dac
Frequency Response @44.1k	10 hz- 20 kHz +0dB, -.2 dB
Dynamic Range	>120dB A-Weighted
THD+N @ 1k	.0008% @ 0dbfs / .0004% @-30dbfs PCM sigma delta<

Unbalanced Analog Outputs	RCA
Impedance	40 ohm
Output level	Full scale at front panel +6 dbm (1.2V RMS)
D/A Conversion	PCM 24 bit delta sigma 8x oversampling, DSD direct 1 bit, 384Khz ladder dac
Frequency Response @ 44.1k	10 hz- 20 kHz -.2 dB
Dynamic Range	>120dB A-Weighted
THD+N @ 1k	.0008% @ 0dbfs / .0004% @-30dbfs PCM sigma delta

General Specifications	EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B
RoHS	Complies with: EU RoHS Directive 2002/95/EC
Safety	Certified to: IEC 60065, EN 55103-2
Operating Temperature	32 F to 105 F (0 C to 40 C)
Storage Temperature:	-22 f to 167 F (-30 C to 70 C)
Finish	Anodized aluminum, nickel plating with brass knobs and buttons.
Dimensions	17” x 12“ x 4.5”
Weight	15 lbs
Shipping Weight	18 lbs
Shipping Dimensions	22”x 17”x 7”
Mains Voltage	-100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
Trigger out	TRS connector for 5V external trigger.
Power consumption:	28 Watts (6W standby)
Warranty parts and labor	2 yrs non-transferable.
