CS-300X(S) is equipped with the Small and Powerful SOVTEK Tube EL-84, which has been welknown by audiophiles for its high sound quality against its small size. A high input sensitivity of EL84 does not require a complicated circuit and accordingly, it can create a low distortion output signal.
HIGHEST-END AUDIO GRADE COMPONENTS RESISTORS: Precision Industrial Grade +/-1%
FIRST-STAGE BY-PASS CONDENSOR: An ultimate audio condensor "OS Condensor" developped by "SANYO"
LAST-STAGE BY-PASS CONDENSOR: "Fine-Gold" by "NICHICON"
JOINT CONDENSOR: "Metalized Polypropylene Condensor" with "Mesh-Shielding".
NF OVERSHOOT PREVENTION CONDENSOR: Ceramic Condensor. CATHODE RESISTOR: 4W type.(Instead of 3W type)
OUTPUT TRANSFORMER: Newly developped Transformer with wider range for high frequency.
WBT type binding post.

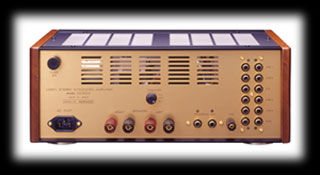

Leben CS-300XS Integrated Amplifier
TUBES EQUIPPED EL84(SOVTEK) X 4
12AX7A(Sovtek) X 2OUTPUT POWER 15W X 2 FREQUENCY RESPONSE 15Hz - 100KHz (-2 dB) DISTORTION 0.7%(10W) INPUT SENSITIVITY 600mV INPUT IMPEDANCE 100K Ohms OUTPUT IMPEDANCE 4/6/8 Ohms (Selectable) POWER CONSUMPTION 82W WEIGHT 10.5 Kgs. DIMENSIONS 360 (W) X 270 (D) X 140 (H) mm ATTACHMENT Detachable AC Power Cable x 1
